    HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light

    Ask Lasest Price
    Brand Name : HABOTEST
    Model Number : HT118C
    Supply Ability : 10000 Piece/Pieces per Month
    Price : $17.50
    • Product Details
    • Company Profile

    HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light

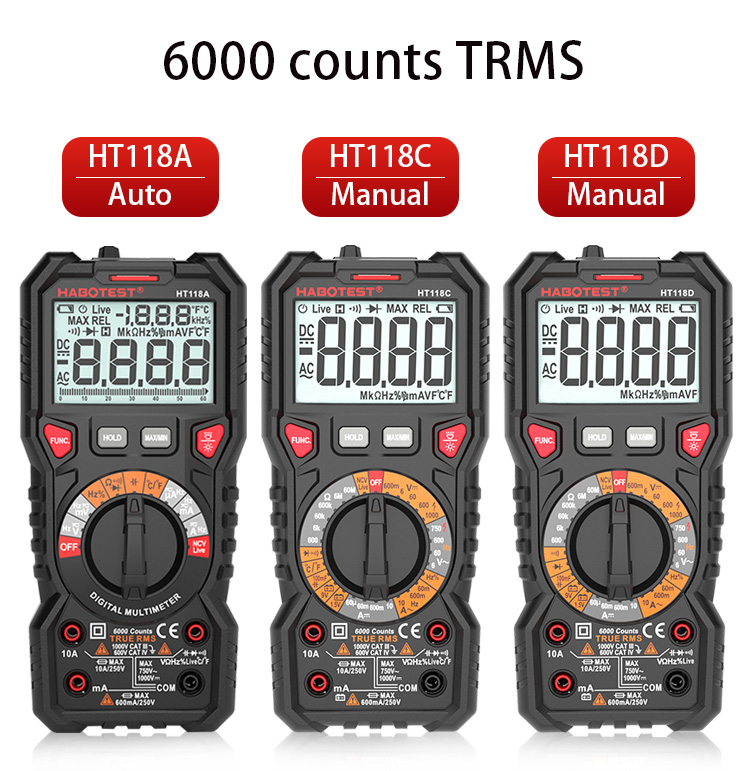

    New Launching Model, HT118 Series 1000V Digital Multimeter


    Parameter:
    FunctionRangeAccuracy
    HT118AHT118CHT118D
    DC Voltage600mV/6V/60V/600V/1000V±(0.5%+3)±(0.5%+3)±(0.5%+3)
    AC Voltage600mV±(1.0%+5)
    6V/60V/600V/750V±(1.0%+5)±(1.0%+5)±(1.0%+5)
    DC Current60uA/60mA/600mA±(0.8%+3)±(0.8%+3)
    600uA/6000uA/60mA/600mA±(0.8%+3)
    10A±(1.2%+3)±(1.2%+3)±(1.2%+3)
    AC Current60mA/600mA±(1.0%+3)±(1.0%+3)
    600uA/6000uA/60mA/600mA±(1.0%+3)
    10A±(1.5%+3)±(1.5%+3)±(1.5%+3)
    Resistance600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ±(0.8%+3)±(0.8%+3)±(0.8%+3)
    Capacitance10nF/100nF/1μF/10μF/100μF/1mF/10mF±(4.0%+3)±(4.0%+3)±(4.0%+3)
    100mF±(5.0%+5)±(5.0%+5)±(5.0%+5)
    Frequency10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz±(1.0%+3)±(1.0%+3)±(1.0%+3)
    Duty1%~99%±(1.0%+2)±(1.0%+2)±(1.0%+2)
    Temperature (°C/°F)-40°C~1000°C±(1.0%+3)±(1.0%+3)
    -40°F~1832°F±(1.0%+3)±(1.0%+3)
    Counts6000 Counts6000 Counts6000 Counts
    Auto/Manual rangeAutoManualManual
    DisplayLCD dual displayLCDLCD
    Bargraph
    Live test(sound and light alarm)(sound and light alarm)(sound and light alarm)
    NCV(sound and light alarm)(sound and light alarm)(sound and light alarm)
    Diode test
    Continuity(sound and light alarm)(sound and light alarm)(sound and light alarm)
    Max/Min hold
    data hold
    True RMS
    bandwidth1kHz1kHz1kHz
    Battery test (1.5V/9V)
    Low battery indication
    Auto power off
    Double color backlight
    Input jack LED indicate
    Work light
    Power2xAA batteries
    Weight
    Size
    Safety RatingEN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 1000V,CATIV 600V
    Product Description

    HT118A is a Multifunctional multimeter with high precision and high performance can measure AC/DC voltage, current, resistance, capacitance, frequency, duty ratio, temperature and True RMS.


    It has a big Bargraph LCD Display with Double color backlight to warn the users about high voltage danger indication. it also featured with input jack indicate LED to avoid wrong input and any damage caused.


    It also can test NCV(non-contact voltage), live line, diode , continuity etc. With a bracket on the back, convenient to place it on the table and read the values.


    HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light

    HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light

    Packaging & Shipping

    HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light


    Our Services

    HT118C Automatic Digital Multimeter 1000V Resistance Capacitance Double Color Back Light


    Company Information

    Dongguan Habotest Instrument Technology Co.,Ltd is a technological innovation enterprise with R&D of scientific and technological, injection molding, production and assembly capabilities. Gathering 20 years of industry experience in research and development of top talent and the most cohesive elite management team. It will show more professional and innovative products to the world's customers to meet the growing market demand.


    Our products accord with international electrotechnical commission safety standards and be approves by ce, rohs, reach and other regulations. We are providing digital multimeter, digital clamp meters, earth resistance testers, insulation testers, environment detector and other special detecting instrument in over scores of product series.


    Provide qualified products and superior service to all the customers is our objective and unlimited pursue, we will keep improving our products and the service for all clients with "Best quality","Beat credit" and "Best service" in the future to win your satisfaction in al aspects
